Product Summary
The BAW56 consists of two high-speed switching diodes with common anodes, fabricated in planar technology, and encapsulated in the small SOT23 plastic SMD package.
Parametrics
BAW56 absolute maximum ratings: (1)repetitive peak reverse voltage: 85 V; (2)continuous reverse voltage: 75 V; (3)ontinuous forward current: 215 mA; (4)repetitive peak forward current: 450 mA; (5)non-repetitive peak forward current: t = 1 ms: 4 A, t = 1 ms: 1 A, t = 1 s: 0.5 A; (6)total power dissipation: 250 mW; (7)storage temperature: -65 +150 ℃; (8)junction temperature: 150 ℃.
Features
BAW56 features: (1)Small plastic SMD package; (2)High switching speed: max. 4 ns; (3)Continuous reverse voltage: max. 75 V; (4)Repetitive peak reverse voltage: max. 85 V; (5)Repetitive peak forward current: max. 450 mA.

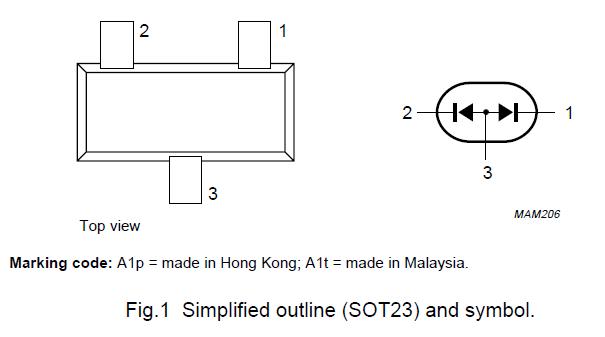

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BAW56 |
Rectron |
Diodes (General Purpose, Power, Switching) Dual,Switching,CA 215mA,75V |
Data Sheet |
|
|
||||||||||||
 |
BAW56 /T3 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) DIODE SW TAPE-11 |
Data Sheet |
Negotiable |
|
||||||||||||
|
BAW56,215 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) SW DBL 75V 215MA HS |
Data Sheet |
|
|
||||||||||||
|
BAW56_D87Z |
Fairchild Semiconductor |
Rectifiers 85V 200mA A1 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BAW56-7 |
Diodes Inc. |
Diodes (General Purpose, Power, Switching) 75V 350mW |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BAW56DW-7-F |
Diodes Inc. |
Diodes (General Purpose, Power, Switching) 75V 200mW |
Data Sheet |
|
|
||||||||||||
 |
BAW56DWT |
Micro Commercial Components (MCC) |
Diodes (General Purpose, Power, Switching) 150mA 75V |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BAW56-V-GS08 |
Vishay Semiconductors |
Diodes (General Purpose, Power, Switching) 70 Volt 250mA |
Data Sheet |
|
|
||||||||||||
