Product Summary
The BC817-25 is a NPN transistor in a SOT23 plastic package.
Parametrics
BC817-25 absolute maximum ratings: (1)collector-base voltage: 50 V; (2)collector-emitter voltage: 45 V; (3)emitter-base voltage: 5 V; (4)collector current (DC): 500 mA; (5)peak collector current: 1 A; (6)peak base current: 200 mA; (7)total power dissipation: 250 mW; (8)storage temperature: -65 +150 ℃; (9)junction temperature: +150 ℃; (10)operating ambient temperature: -65 +150 ℃.
Features
BC817-25 features: (1)Low current (max. 100 mA); (2)Low voltage (max. 40 V).

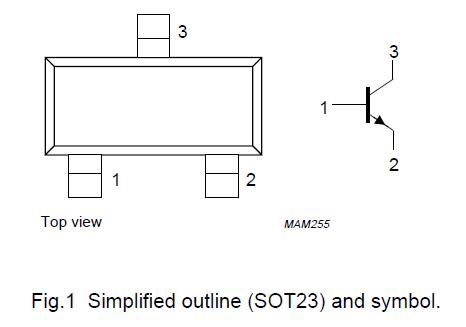

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BC817-25,215 |
NXP Semiconductors |
Transistors Bipolar (BJT) NPN GP 500 45V |
Data Sheet |
|
|
||||||||||||
 |
BC817-25-7-F |
Diodes Inc. |
Transistors Bipolar (BJT) NPN BIPOLAR |
Data Sheet |
|
|
||||||||||||
 |
BC817-25W |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BC817-25W,115 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS GP TAPE-7 |
Data Sheet |
|
|
||||||||||||
 |
BC817-25W-7 |
Diodes Inc. |
Transistors Bipolar (BJT) NPN SURFACE MOUNT SMALL SIGNAL TRANS |
Data Sheet |
|
|
||||||||||||
|
BC817-25W,135 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS GP TAPE-11 |
Data Sheet |
|
|
||||||||||||
|
BC817-25W /T3 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS GP TAPE-11 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BC817-25-TP |
Micro Commercial Components (MCC) |
Transistors Bipolar (BJT) 45V, 800mA |
Data Sheet |
|
|
||||||||||||
