Product Summary
The PMBT2222A is a NPN switching transistor in a SOT23 plastic package. The applications of the PMBT2222A include switching and linear amplification.
Parametrics
PMBT2222A absolute maximum ratings: (1)collector-base voltage: 75 V; (2)collector-emitter voltage: 40 V; (3)emitter-base voltage: 6 V; (4)collector current (DC): 600 mA; (5)peak collector current: 800 mA; (6)peak base current: 200 mA; (7)total power dissipation: 250 mW; (8)storage temperature: -65 +150 ℃; (9)junction temperature: +150 ℃; (10)operating ambient temperature: -65 +150 ℃.
Features
PMBT2222A features: (1)Low current (max. 600 mA); (2)Low voltage (max. 40 V).

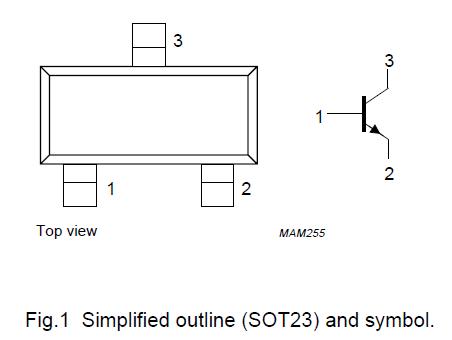

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PMBT2222A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
PMBT2222A /T3 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS SW TAPE-11 |
Data Sheet |
Negotiable |
|
||||||||||||
|
PMBT2222A,215 |
NXP Semiconductors |
Transistors Bipolar (BJT) NPN SW 600MA 40V |
Data Sheet |
|
|
||||||||||||
|
PMBT2222A,235 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS SW TAPE-11 |
Data Sheet |
|
|
||||||||||||
